Check Valves

Check Valves for Chemical InjectorsCheck Valves are available to prevent water from the main line from entering the injector feed lines.  Inyo offers a variety of check valves to best suit any application.

Size

(in) NPT

Pressure to Open (psi)

Maximum Pressure (psi)

Maximum Back Pressure (psi)

Maximum Temperature

1/2

1.5

150

100

PVC 140 ºF

CPVC 180 ºF

PVDF 180 ºF

3/4





PVC, CPVC, PP & PVDF Check Valves
Pipe Size (NPT thread) A B C
in mm in mm in mm
1/2" 3.8 97 1.3 33 2.4 62 RKM050V-PV
3/4" 4.1 105 1.6 39 2.8 72 RKM075V-PV
1" 4.7 120 1.9 48 2.8 72 RKM0100V-PV
Available with Viton or EPDM diaphragmRKM(series) 050(size) V(seal material) - PV(body material)
Part numbers shown are Viton seals with PVC bodies.
• For EPDM seals, change "V" to "EP" (RKM050EP-PV)
• For Buna-N seals, change "V" to "B" (RKM050B-PV)
• For Kynar PVDF body, change "-PV" to "-PF" (RKM050V-PF)
• For Polypropylene body, change "-PV" to "-PP" (RKM050V-PP)
• For Corzan CPVC body, change "-PV" to "-CP" (RKM050V-CP)
Standard connections are threaded. For socket connection, add "S" after seal material (RKM050VS-PV)
For spigot or other connection types, consult factory.

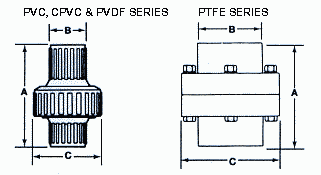

Check Valve Dimensions for Chemical Injection check valves

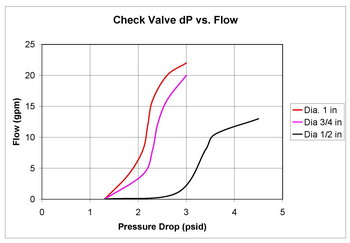

Check Valve Graph for chemical injector

PTFE Check Valves

Pipe Size (NPT thread)

A

B

C



 in

mm

in

mm

in

mm

3/4"

3.6

92

1.9

48

3.0

76

RK075V-TF

1"

4.3

110

1.9

48

3.0

76

RK0100V-TF

Available with Viton, EPDM, or Buna N seals

RK(series) 050(size) V(seal material) - TF(body material)

Part numbers shown have Viton seals.

• For EPDM seals, change "V" to "EP" (RK050EP-TF)

• For Buna-N seals, change "V" to "B" (RK050B-TF)

Threaded connections only.

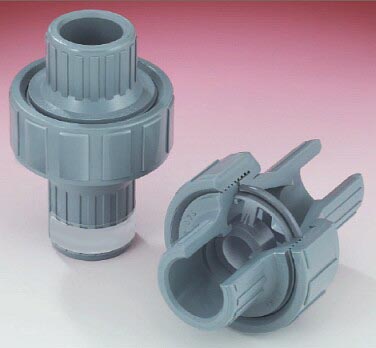

CPVC Check Valve for Chemical Injector

APPLICATIONS
All
Chemical Injection and Sampling
Chemical Injection and Sampling
Chemical Injection and Sampling
Chemical Mixing
Chemical Mixing
Liquid into Gas
Liquid into Gas
Gas into Liquid
Gas into Liquid
Concentrated Acid Solutions
Concentrated Acid Solutions
